What New Build and Remodel Each Decide for Cellar Lighting

September 7, 2026

An open stud bay is the one object that separates a new-construction lighting plan from a remodel's. In new construction, that bay sits exposed: bare studs, joist space overhead, and a vapor barrier that has not been stapled shut yet. In a remodel, the same wall is already closed: a finished ceiling, wood already fastened to the studs, and a circuit panel sized for the house as it stood before anyone mentioned a cellar. Both projects can land on the same fixtures and the same layered look on paper. The path to get there differs even when the end result looks similar: two different sets of physical constraints that happen to end in similar-looking fixtures.



That distinction matters more for lighting than for almost any other system in a cellar. You can order racking to fit whatever footprint already exists, and cooling equipment can usually be relocated to wherever ducting or a wall penetration allows. Lighting is different: it depends on three things a remodel has already decided and a new build has not yet decided — where wire can physically go, what the walls and ceiling are made of, and how much room is left on the electrical panel.

Where the Wire Can Actually Run

In new construction, your electrician runs wire before drywall closes the cavity. Cable drops straight through open stud bays and joist space to whatever point the lighting plan calls for, and conduit gets sized and routed to match that plan instead of the plan bending to match existing runs. A fixture position on paper becomes a fixture position in the wall with very little compromise between the two.


In a remodel, the wire has to follow whatever path is actually open. That usually means fishing cable through an existing wall cavity from an accessible point, running a new line back to the panel along a route that avoids blocking and existing plumbing, or, where fishing is not practical, running the circuit on a surface raceway instead of opening a wall to bury it. Whichever path is used, the fixture ends up wherever that path can reasonably reach, rather than wherever the design would put it first.

Even when both projects land on a recessed fixture, they are not buying the same part. A new-construction housing mounts to the framing itself, on bar hangers or nail-on brackets set before drywall goes up, and the drywall gets cut to the housing afterward. That housing carries more weight and sits square to the framing, and it gives your installer real latitude on exact placement because it goes in before anything else is finished.



A remodel, or retrofit, housing works from the opposite direction. The installer cuts a hole in the existing drywall or ceiling material first, then the housing goes in through that hole and grips the back side of the material with spring clips or a torsion spring rather than fastening to a joist. It is a different part built for a different sequence, which is why a retrofit fixture from one manufacturer will not necessarily interchange with a new-construction trim from another.

WARNING: Adding a circuit to an existing panel means opening one that is already live. The cellar builder coordinates that work with a licensed electrician on every project; checking available capacity is a judgment call for that trade, not the collector's.

A new build's vapor barrier goes up after the electrical rough-in, so it is still open while every fixture box, low-voltage run, and cove-channel penetration gets planned. A remodel starts from a vapor barrier that is already closed behind finished walls, which is one more reason a remodel favors fixtures that mount to a wall or ceiling face, or that integrate into the racking itself.

New construction lets your electrical plan account for the cellar's lighting and cooling load from the start, with panel size and breaker space chosen to include it. A dedicated lighting circuit gets planned in alongside everything else the house needs, with room already accounted for instead of found later.



A remodel is working against a panel that was sized for the house as it already existed. Adding a cellar lighting circuit means finding open breaker space, and on an older or fully loaded panel that space may not exist without upgrading the panel or subpaneling off it, a separate project with its own scope. That conversation happens directly between you and a licensed electrician; panel capacity is not estimated from a lighting plan alone.

Question the design has to answer New build Remodel
Can you confirm exact fixture position before it locks in? Yes, by walking the open framing against the plan before drywall closes Only where an existing opening or accessible run already lines up with the plan
Whether the panel has room for a dedicated lighting circuit — confirmed by the electrician against the actual panel, since a lighting plan cannot show it. Planned in from the start Depends on existing breaker space
Does adding a circuit require opening finished surfaces? No, walls are still open Often, unless a surface raceway is used
Is the recessed housing itself a different part between the two? Bar-hanger or nail-on housing Spring-clip or torsion-spring retrofit housing

What a Later Change Has to Match

The real difference between changing course in a new build and changing course in a remodel is not the wire. It is what the new work has to match once it goes in. In new construction, every piece of wood, trim, and racking in the room arrives from the same order at close to the same time, so anything added or moved afterward is cut from stock that still matches everything already installed.



In a remodel, the racking already in the room has typically spent months or years inside the cellar's cooled, humidity-controlled air, and wood species shift color and sometimes dimension slightly over that time. Wood or trim ordered later to extend the racking, patch a repositioned fixture opening, or fill a channel has to be matched against that aged material instead of a fresh sample chip, and getting the match right is its own skilled task, separate from the electrical work. The wire itself takes little time to move; matching new material to material that has already lived in the cellar is what actually extends the schedule.

What Doesn't Change Either Way

Some things stay the same no matter which project you are standing in. The fixtures themselves come from the same catalog either way: LED only, layered across ambient, task, and accent roles, chosen for your racking geometry and your bottles. A cellar built on a slab with no plenum above it removes some of these routing options regardless of which column applies, since that is a structural condition tied to the building itself, independent of how old or new the project is.


Coordination with a licensed electrician is constant too. The design team sets the lighting plan and specifies the fixtures; the electrician runs and terminates the circuit in either scenario, new build or remodel. What changes is how much latitude that electrician has to work with. Whether the work itself gets handled by a licensed trade does not change at all.

Frequently Asked Questions

  • Can lighting control be dimmed or zoned differently in a remodel versus a new build?

    It depends on when the low-voltage wire goes in. During framing, the two paths are simply cheap to run at the same time, since both are still open runs waiting to be pulled. Added later, it usually needs its own separate path fished on its own, because low-voltage control conductors are not run in the same raceway as the line-voltage circuit, regardless of when the wall was closed.

  • Can an existing cellar's racking be reused if the lighting plan changes?

    Yes, but the racking's fabricator-installed accommodations set the ceiling on what changes. If the original racking was built with an integrated channel or a top-rail cutout sized for a specific fixture line, moving to a different lighting brand later means matching that channel's exact width and depth or living with a visible gap, since the rack is not being rebuilt to fit a new fixture family. Where the original racking has no built-in channel, a new plan is free to add wall- or ceiling-mounted lighting without touching the rack at all.

  • Does "room in the panel" mean an open breaker slot, or something more?

    Both, and they are not the same constraint. An older panel can have a physical slot open for a new breaker and still lack the amperage headroom to spare once the rest of the house's loads are added up, which is a separate question from whether a slot exists. A new-build panel is sized against the whole house's planned load, including the cellar, so the two limits get resolved together from the start instead of checked separately later.

  • Does a full gut renovation get the same lighting options as new construction?

    Yes, for the portion taken back to the studs. A gut remodel temporarily has the same open-cavity access as a new build, so cove channels, true recessed housings, and rerouted circuits are all available again for that scope, even though the project is technically a remodel.

  • If only the racking is being replaced, does the lighting have to be rewired too?

    Usually not. A racking-only remodel that leaves the walls and ceiling intact typically just needs the existing fixture whip relocated to line up with your new layout; the circuit itself rarely has to be rerun from the panel.

  • Does changing the lighting plan after fixtures are ordered cause delays in a remodel?

    It can, separately from the electrical work itself. Custom or special-order fixtures carry their own lead time, so a late change to the plan can hold up the project even after the wiring is already finished and tested.


    Whichever column you are standing in, the fixtures rarely make or break a wine cellar lighting plan. What the building allows you to run, hide, and reach later does. Knowing which column you are in before the design gets drawn is what keeps the plan honest.

Bring your framing plans or existing floor plan to the first design conversation — the lighting layout starts from what your project actually allows. Cachet Wine Cellars designs and builds custom wine cellars from Irvine, California, with a lifetime warranty on every installation. Call (949) 569 7857.

< Older Post Newer Post >

Recent Posts

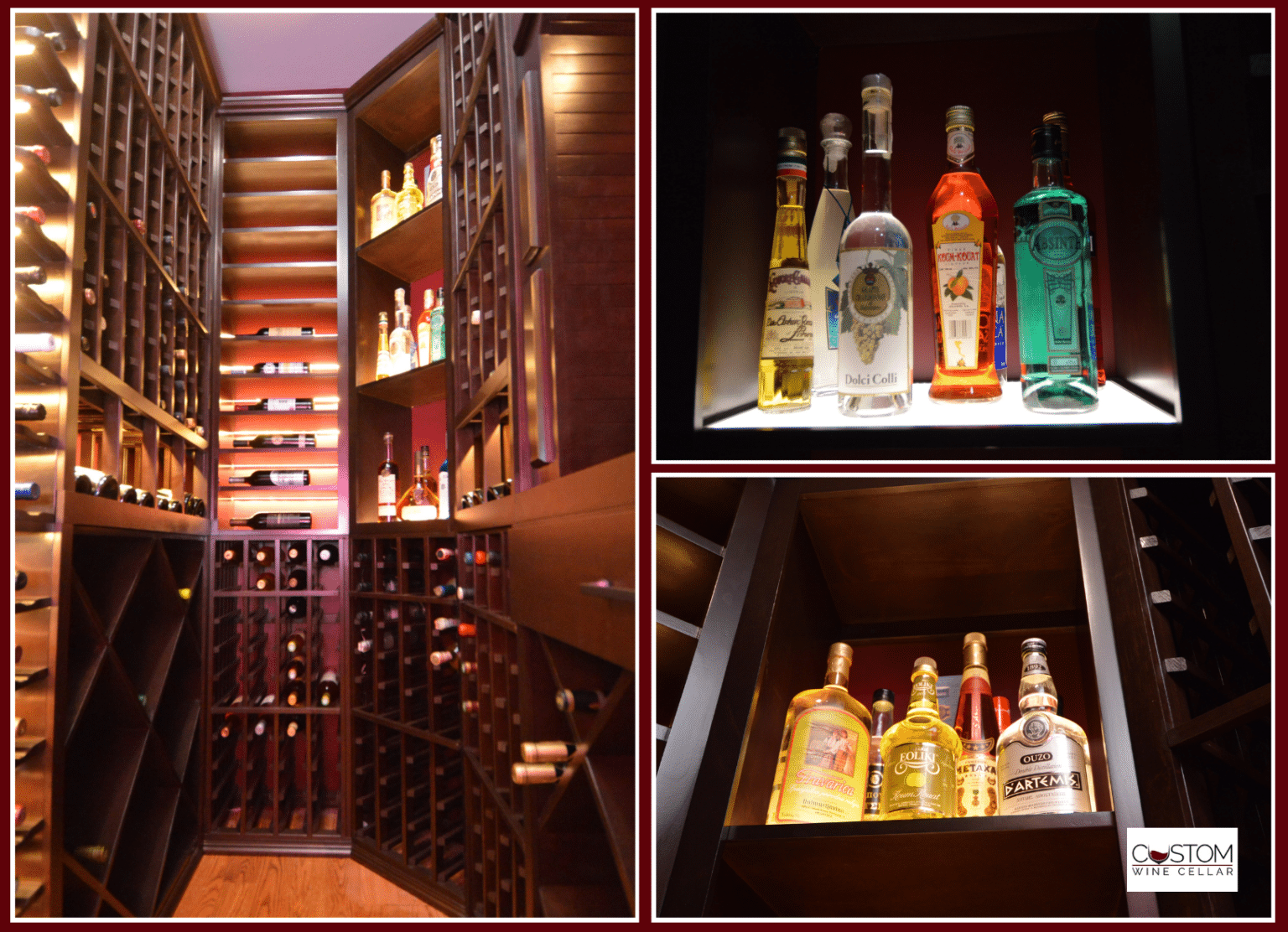

Luxury wine cellar with wooden racks and shelves of assorted liquor bottles displayed on warm lighting.

Damp Rated Wine Cellar Light Fixtures: Which Zones Need Them

September 7, 2026
A cellar holds humidity almost no other room does. What dry, damp, and wet listings actually mean, what an IP code misses, and which zones need which.
Wooden wine rack filled with bottles in a cozy cellar display

COB vs SMD LED Strip: What Changes Inside a Wine Rack

September 7, 2026
One strip carries packaged emitters at intervals, the other bare dies under continuous phosphor. What that single difference decides inside a rack.
Rows of wine bottles stored horizontally on tall racks in a cellar or shop.

Wine Cellar Lighting Beam Angle Matters More than Lumens

September 7, 2026
Two cellar fixtures at identical lumen output can light a room completely differently. Beam angle is the variable that settles which one you get.

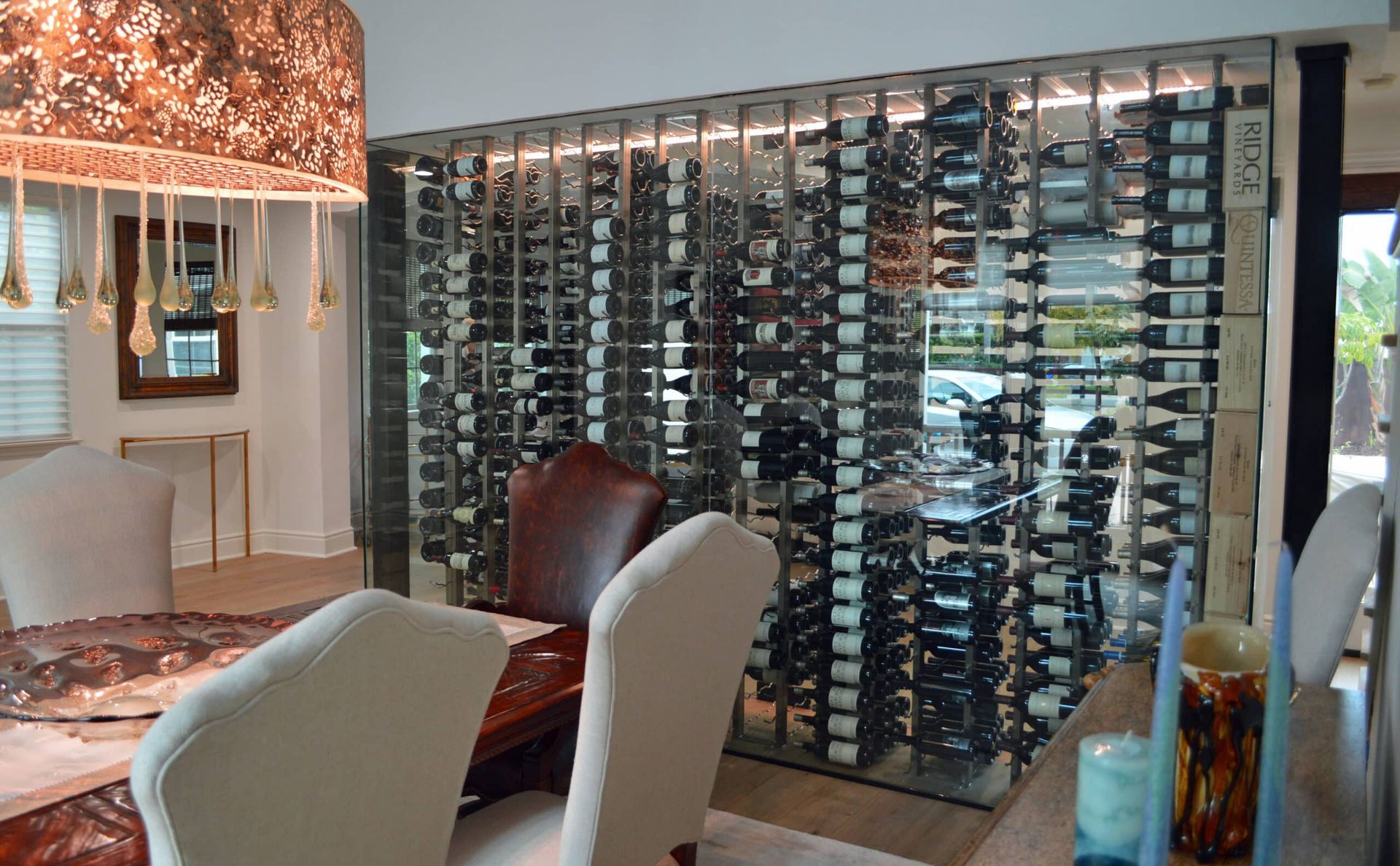

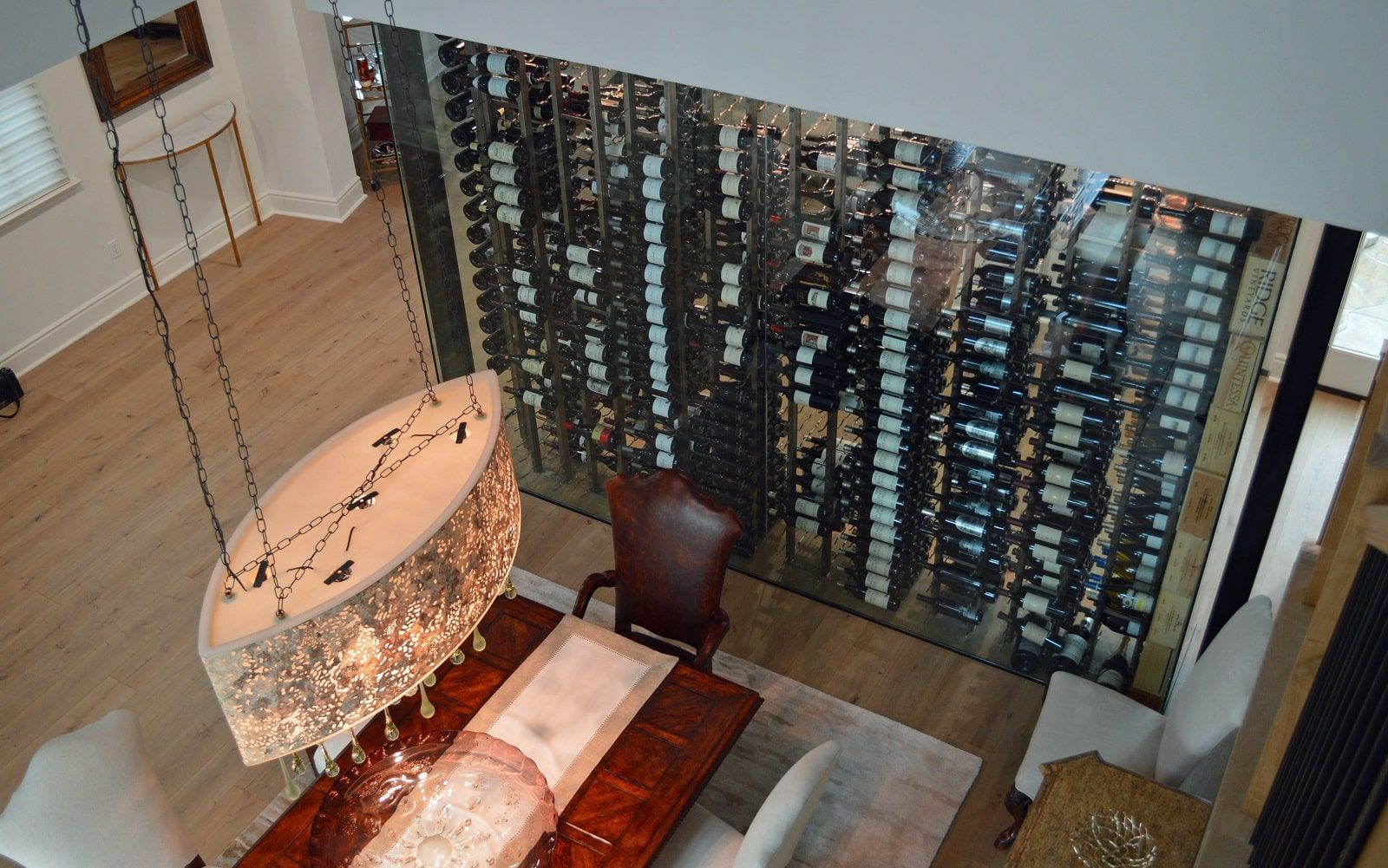

Modern dining room with glass wine wall, round table, and staircase in the background
