Does a single-pane cellar door fog more readily than a double-pane one?

Usually yes. A single-pane frameless door is one 13.5mm sheet of tempered glass, so the face the room air touches is separated from 55°F cellar air by that thickness alone and runs close to it. The double-pane version uses two 6.8mm panes with an air gap between them, and the gap lets the room-side pane sit nearer to room temperature, further from the dew point of the air against it.

Does tinted glass reduce condensation, or just make it less noticeable?

Tinted glass reduces glare and internal reflections, and it makes fingerprints and light fogging less visually apparent. It does not change the glass surface temperature or the dew point of the air touching it, so a tinted pane can carry the same amount of moisture as a clear one while showing it less obviously.

Is low-iron glass worth specifying if condensation is a concern?

Low-iron glass costs 15 to 20 percent more than standard glass and is chosen for optical clarity, removing the faint green cast standard glass carries, not for any condensation-related performance. Choosing it changes how the door looks, not how often moisture forms on it.

Can frosted or satin glass sections hide a condensation issue on a problem door?

Frosted and satin sections are offered on cellar doors as a privacy option on select panels, chosen for appearance rather than for anything they do to moisture. Condensation still forms on a frosted surface under the same dew-point conditions as clear glass, and it can still pool along the bottom edge or hardware even where the fogging itself is harder to see.

Does a larger door fog more than a smaller one?

Not per square inch, but a tall door often shows it sooner near the floor. Cellar air stratifies, with the coldest air settling at the bottom of the room, so the lower portion of a tall pane runs a degree or two colder than the top and reaches dew point first. That is why fogging on a full-height door tends to appear as a low haze rather than an even sheet across the whole face.

What would put the water on the cellar-facing pane instead?

The house side would have to run colder than the 55°F cellar, which is uncommon in this climate but not impossible: a door facing an unheated garage bay on a cold night, or a room held aggressively low by its own air conditioning, can drop the cellar-facing surface below the dew point of the cellar's own air. The tell is timing. That version appears overnight and burns off as the house warms, the reverse of the marine-layer pattern.

Wine Cellar Glass Door Condensation: Which Side Is Wet?

Choosing Between Them for a Specific Run

Once a schedule has been issued to anyone, changing a value quietly is worse than not changing it. A revised schedule carries a new revision number, a new date, and a marker against every row that moved, so a reader holding both versions can tell in seconds which lines are different. Reissuing a corrected sheet with no revision marker leaves two documents in circulation that look interchangeable and are not.

The reissue also has to reach the people working from the old one. A cellar's fixture order, the racking shop drawings, and the electrical rough-in can all be running from the same schedule at the same time, and a Kelvin value corrected on the designer's copy changes nothing until the version carrying that correction lands with whoever placed the order.

Fixture substitutions happen at bid, at order, and occasionally after delivery, and a fully populated schedule is what sets the terms of one in advance. A substitution proposed against a complete row has to hold every value on that row, including the ones a supplier would find inconvenient to match. A fixture matching wattage, beam angle, and trim size while dropping below a stated CRI floor is a different specification, and a populated row makes that visible without an argument about intent.

The burden of showing it sits with whoever proposes the swap. A substitution request arriving as a catalog number and a price, with no line-by-line comparison against the scheduled values, has not been made yet; it has been asked about. Requiring that comparison in writing is what keeps the substitution a decision the specifying professional is still making.

The Sheet Has to Say What It Is

TIP: A schedule reissued after fixtures are ordered should say so on the sheet. A revision that arrives post-order is a change order in practice, and marking it as one keeps the cost conversation attached to the line that caused it.

What you observe	Points to
Present since installation, color consistent, dim points evenly spaced	Spacing and mounting height
Boundary lines up with a material seam in the racking, present from day one	Rack depth or finish change
Color shifts across a boundary, not just brightness	Mixed LED bins from a partial replacement
Whole run dims, flickers, or fades together; appeared after a period of looking fine	Driver channel losing output

Condensation is not a property of glass. It forms wherever moist air touches a surface colder than that air's dew point, which for cellar air held at 55°F and 65 percent relative humidity sits at roughly 43°F. The glass responds to the conditions on each of its two faces, not to which side of it is labeled the cellar.

That is where most general advice about wine cellar condensation goes wrong. The familiar version assumes the cellar is the humid space and the room outside is the cool one, which puts the water on the cellar-facing pane. That is a real failure mode. It is also only one of the two directions the physics can run, and in a warm coastal market it is usually the less common one. The other direction puts the water on the face you are standing in front of.

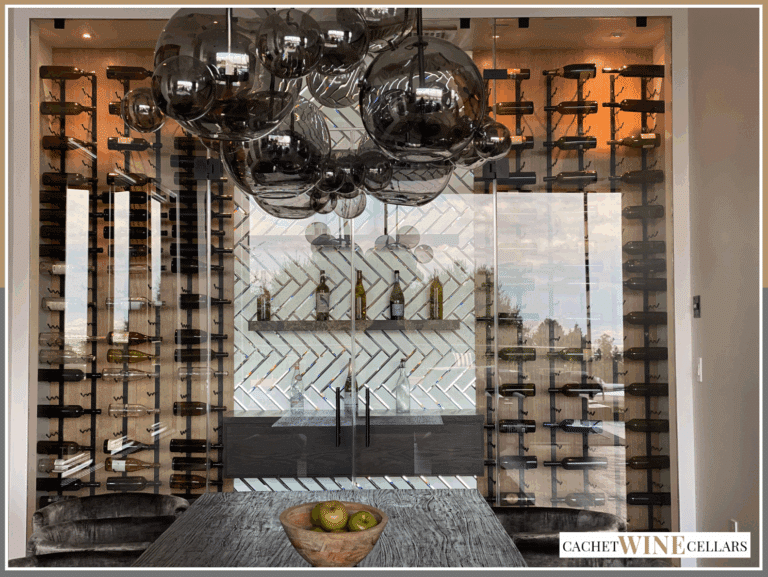

A cellar held at 55°F and 60 to 70 percent relative humidity is, by definition, colder than the house around it. That makes the house-facing pane the cold surface, since the 55°F cellar sits directly behind it, and it makes the house air the humid one whenever the room takes on moisture faster than the home's air conditioning pulls it back out. Under ordinary conditions the temperature difference across the door is modest enough that neither face crosses its dew point, and the glass stays clear.

That balance tips on marine-layer mornings. Overnight fog and low cloud along the coast push outdoor humidity up sharply, and that moisture works into the house through an entry door, an open window, or simply the building's normal air exchange before the air conditioning has cycled enough to dry it back down. For a stretch of hours, the air inside the house carries more moisture than it does on a clear day, and that air is sitting against the cold face of the cellar door. The water shows up on the pane the owner looks at from the dining room or the hallway, not on the pane oriented toward the bottles inside.

Most wine cellar content written for other regions assumes a cold, dry exterior and a warm, humidified interior, the same setup that produces condensation on ordinary window glass in winter. Applied to a cellar, that logic puts the moisture on the cellar side, where the air is cool and often deliberately held at higher relative humidity to protect corks. It is the default assumption behind most general guidance on this topic, cellar-side condensation included.

It does not hold in coastal Orange County, for two reasons. First, homes in this market are overwhelmingly slab-on-grade, with the cellar built into living space rather than a below-grade room separated from the house by additional structure. The glass door typically opens directly onto a dining room, a great room, or a hallway, so the far side of the door is conditioned house air, not a garage or an unconditioned corridor. Second, the marine layer inverts the usual outdoor-humid, indoor-dry assumption for part of the day. Once that inversion happens, the house side of the door is the humid side, and the cellar side is not.

Fogging on either face of a single pane is surface condensation, and it responds to the air conditions described above. It is a different problem entirely when moisture, or a cloudy haze that looks like moisture, sits between the two panes of a double-glazed door and never wipes away, because there is nothing on an exposed surface to wipe. That pattern means the seal on the insulated glass unit has failed, letting air and moisture into the gap between the panes. It is a manufacturing or seal defect, not a humidity condition, and it resolves with pane replacement rather than any adjustment to the cellar or the house.

Wiping the glass addresses the symptom for as long as it takes new moisture to reach dew point again, which on a marine-layer morning can be within the hour. Three specification choices change how often that threshold gets crossed in the first place.

Glazing construction is the first. A double-pane door, built from two panes of tempered glass separated by an air gap rather than a single sheet, keeps the room-side face of the glass closer to room temperature, because the gap slows heat transfer from the cellar side across to the pane the house air touches. The other glass choices offered on a cellar door, tinting and low-iron, change how the door looks rather than how cold that face runs.

Seal integrity is the second, and it matters as much at the door's edges as at the glass itself. Cachet's frameless doors close against magnetic gasket seals along a pivot-hinge edge, with a recessed threshold set one to two inches down, all intended to keep the cellar's 55°F air separated from the room without a gap for mixed, in-between air to sit against the glass edge. A Dana Point project built into an open-plan dining room was specified with double-paned tempered glass and H-shape weather strips, a combination chosen to keep condensation off a door with house-side air moving past it throughout the day.

House-side humidity is the third, and it is the one most often skipped because the door gets blamed instead. The dew point of the air touching the room-side pane is set by that room, not by anything inside the cellar, so how damp the space next to the cellar runs is a condition worth having assessed before any glass or hardware is changed. Cachet can tell you whether the door, its gasket line, and its threshold are contributing to what you are seeing; the home's climate control and ventilation near the entry belong to whoever handles the rest of the house.

Light fogging that appears during marine-layer mornings and clears within a few hours as the house air dries out is the expected behavior of a correctly performing door and a correctly performing cooling system, not a fault to correct. What warrants a closer look is moisture that persists through the afternoon regardless of conditions, that pools enough to reach the threshold hardware or the floor rather than evaporating off the glass, or that appears low on the door in a pattern that does not track with the weather outside. Any of those points to a seal or gasket no longer doing its job, a gap in the door's fit, or, if the moisture is trapped between panes, the insulated glass unit itself.

Does a single-pane cellar door fog more readily than a double-pane one?
Usually yes. A single-pane frameless door is one 13.5mm sheet of tempered glass, so the face the room air touches is separated from 55°F cellar air by that thickness alone and runs close to it. The double-pane version uses two 6.8mm panes with an air gap between them, and the gap lets the room-side pane sit nearer to room temperature, further from the dew point of the air against it.
Does tinted glass reduce condensation, or just make it less noticeable?
Tinted glass reduces glare and internal reflections, and it makes fingerprints and light fogging less visually apparent. It does not change the glass surface temperature or the dew point of the air touching it, so a tinted pane can carry the same amount of moisture as a clear one while showing it less obviously.
Is low-iron glass worth specifying if condensation is a concern?
Low-iron glass costs 15 to 20 percent more than standard glass and is chosen for optical clarity, removing the faint green cast standard glass carries, not for any condensation-related performance. Choosing it changes how the door looks, not how often moisture forms on it.
Can frosted or satin glass sections hide a condensation issue on a problem door?
Frosted and satin sections are offered on cellar doors as a privacy option on select panels, chosen for appearance rather than for anything they do to moisture. Condensation still forms on a frosted surface under the same dew-point conditions as clear glass, and it can still pool along the bottom edge or hardware even where the fogging itself is harder to see.
Does a larger door fog more than a smaller one?
Not per square inch, but a tall door often shows it sooner near the floor. Cellar air stratifies, with the coldest air settling at the bottom of the room, so the lower portion of a tall pane runs a degree or two colder than the top and reaches dew point first. That is why fogging on a full-height door tends to appear as a low haze rather than an even sheet across the whole face.
What would put the water on the cellar-facing pane instead?
The house side would have to run colder than the 55°F cellar, which is uncommon in this climate but not impossible: a door facing an unheated garage bay on a cold night, or a room held aggressively low by its own air conditioning, can drop the cellar-facing surface below the dew point of the cellar's own air. The tell is timing. That version appears overnight and burns off as the house warms, the reverse of the marine-layer pattern.
